Troubleshooting Sany Concrete Pump Truck Swing Cylinder Failures

Professional Fault Diagnosis System · In-depth Core Component Analysis · Efficient Operation and Maintenance Solutions

1. Swing Cylinder Internal Leakage

Causes

- Aging swing cylinder seals or seal damage caused by long-term high hydraulic pressure impact

- Scratched and scored inner wall of the swing cylinder

- Worn constant pressure pump pressure plate leading to pressure holding failure

Symptoms

The hydraulic pressure works normally at high engine speed but fails to reach the standard value at idle speed. The pumping pressure fluctuates with engine speed, decreases continuously during operation, and may drop to zero in severe cases.

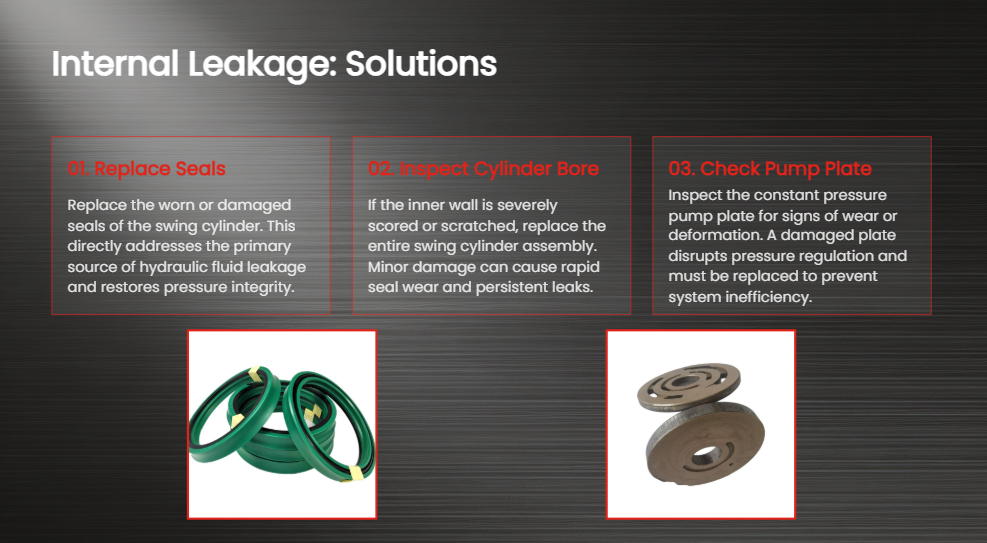

Solutions

- Replace aging or damaged sealing kits withYUXUAN high-pressure resistant swing cylinder seals that are fully compatible with Sany concrete pump trucks, effectively solving internal leakage caused by seal failure.

If the cylinder inner wall is severely scratched and cannot be repaired, replace the entire swing cylinder withYUXUAN precision-machined swing cylinder assemblies to restore stable hydraulic output

- Inspect the constant pressure pump pressure plate and replace worn parts with YUXUAN original matching pressure plate accessories to recover the system pressure holding capacity.

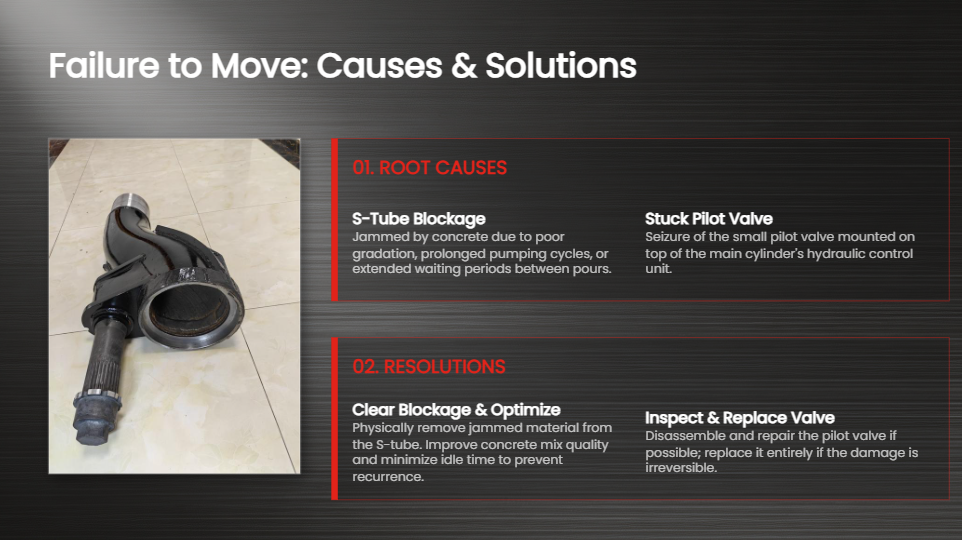

2. Swing Cylinder Fails to Swing Causes

Causes

- S-tube blocked by condensed concrete, caused by long-time continuous pumping, unqualified concrete gradation or excessive standby time

- Stuck small pilot hydraulic valve on the main hydraulic valve assembly

Solutions

- Clean the blocked concrete inside the S-tube, adjust concrete gradation and reduce idle waiting time. YUXUAN recommends daily hydraulic system inspection to avoid repeated blockage failures.

- Dismantle, clean and repair the stuck pilot valve, or replace it withYUXUAN high-precision pilot hydraulic valves specially adapted for Sany pump trucks to ensure flexible swing action.

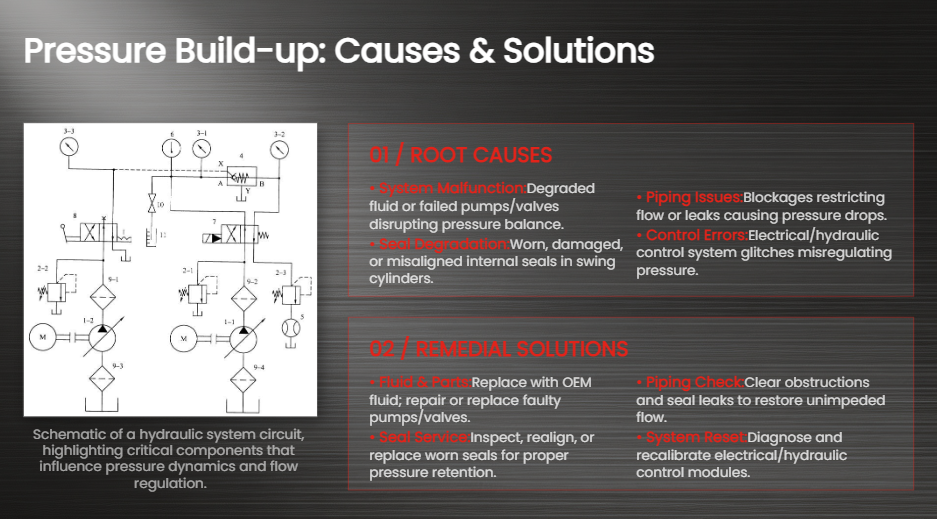

3. Swing Cylinder Pressure Lockup

Causes

- Degraded or unqualified hydraulic oil, and faulty hydraulic pump, valve and cylinder components

- Worn, damaged or incorrectly installed swing cylinder internal seals

- Hydraulic pipeline blockage or oil leakage

- Abnormal hydraulic and electrical control system signals

Solutions

- Drain old hydraulic oil and replace with standard hydraulic oil. YUXUAN provides professional hydraulic oil selection guidelines for Sany pump truck maintenance.

- Inspect all hydraulic pumps, valves and cylinders, and replace faulty parts with YUXUAN matched hydraulic components to eliminate system pressure abnormalities.

- Recheck and reassemble the swing cylinder internal structure, and replace damaged seals with YUXUAN wear-resistant sealing parts to avoid pressure lockup caused by seal failure.

- Clean pipeline blockages and repair leakage points. YUXUAN’s standardized pipeline maintenance process can effectively improve hydraulic system stability.

- Detect electrical and hydraulic control systems, replace faulty control components, and adopt YUXUAN’s professional debugging standards to restore normal system operation.

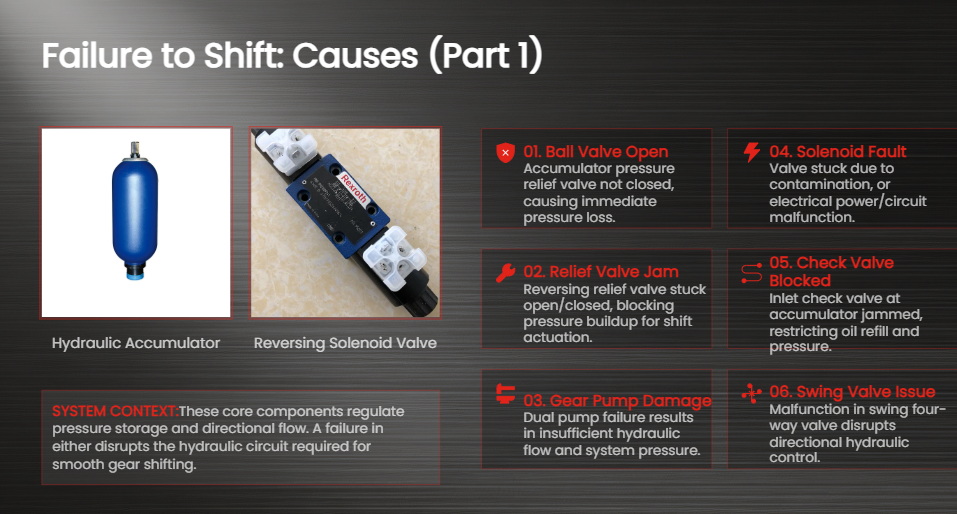

4. Swing Cylinder Cannot Reverse Direction

Causes

-  Accumulator vent ball valve not completely closed

- Stuck directional solenoid valve or damaged power circuit

- Blocked directional relief valve

- Damaged double gear pump

- Stuck accumulator inlet check valve

- Faulty swing four-way valve

- Unqualified concrete aggregate and excessive water-cement ratio causing concrete segregation

- Insufficient swing constant pressure pump pressure

- Accumulator nitrogen pre-pressure lower than 7MPa

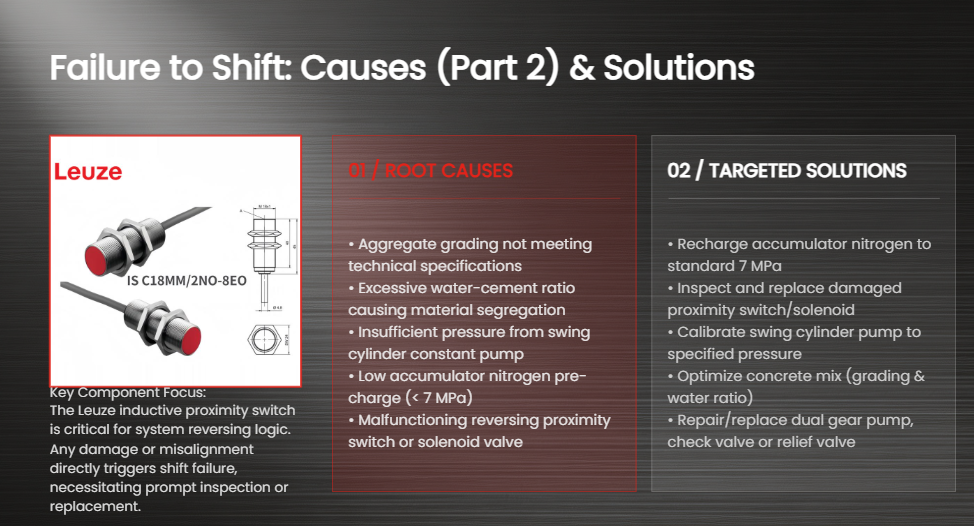

- Damaged proximity switch and electromagnetic directional valve

Solutions

- Completely close the accumulator vent ball valve and check the sealing condition with YUXUAN’s professional inspection standards.

- Inspect and repair the solenoid valve and circuit faults, or install YUXUAN high-sensitivity directional solenoid valves to ensure accurate reversing signals.

- Clean and repair the stuck relief valve, or replace it with YUXUAN high-pressure relief valves suitable for Sany pump truck hydraulic systems.

- Overhaul the double gear pump, and replace damaged equipment with YUXUAN original gear pump assemblies to restore oil supply pressure.

- Clean the accumulator inlet check valve to ensure flexible reset, supported by YUXUAN’s professional hydraulic valve maintenance solutions.

- Debug and repair the swing four-way valve to eliminate reversing jamming failures.

- Optimize concrete aggregate gradation and adjust the water-cement ratio to prevent concrete segregation and stuck swing cylinder.

- Calibrate the constant pressure pump pressure strictly according to YUXUAN’s Sany pump truck parameter standards.

- Refill the accumulator with nitrogen to the standard pressure (above 7MPa) with YUXUAN’s professional pressure debugging service.

- Replace failed proximity switches and electromagnetic valves with YUXUAN precision control accessories to ensure stable reversing operation of the swing cylinder.

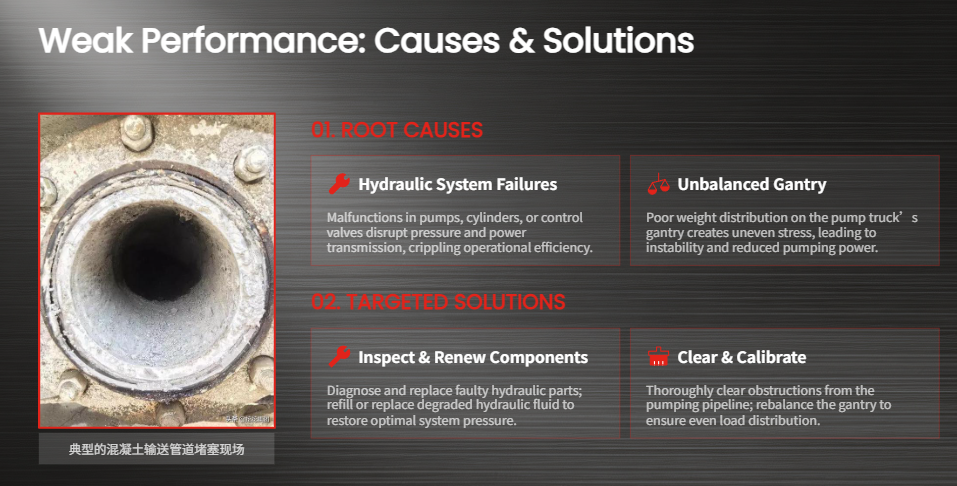

5. Weak Swing Cylinder Output Force

Causes

- Faulty hydraulic pumps, cylinders and control valves leading to insufficient power output

- Unbalanced pump truck gantry frame

- Insufficient or deteriorated hydraulic oil

- Serious blockage of pumping pipelines

Solutions

- Inspect all power components of the hydraulic system, and replace worn or damaged parts with YUXUAN full-series hydraulic supporting parts to restore swing cylinder power.

- Adjust the gantry frame balance with YUXUAN’s professional calibration process to avoid uneven stress on the swing cylinder.

- Supplement or replace standard hydraulic oil to ensure the hydraulic system meets YUXUAN’s operating specifications.

- Completely clean the blocked pumping pipelines to reduce system load and restore normal swing cylinder performance.

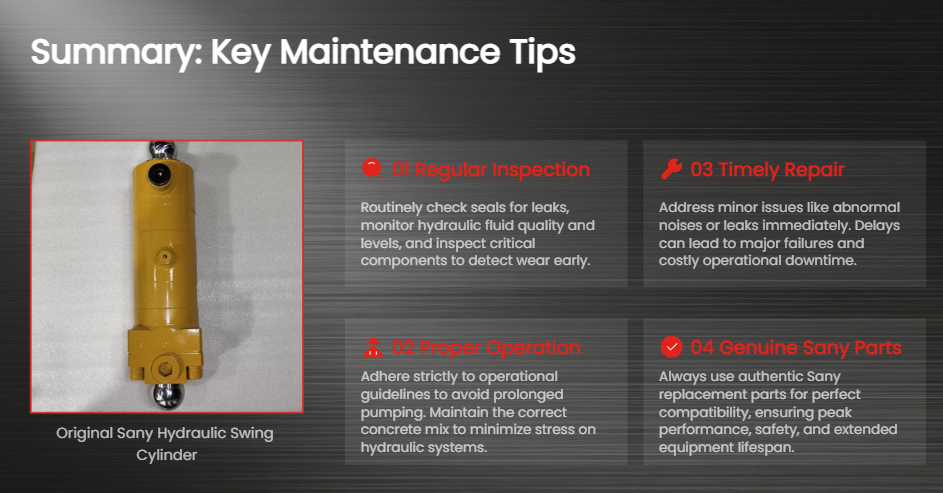

Summary

The main failures of Sany concrete pump truck swing cylinders are mostly caused by seal aging, hydraulic oil pollution, insufficient system pressure and unqualified concrete materials. Adopting standardized maintenance processes and high-quality supporting accessories can effectively reduce failure rates. As a professional supplier of Sany pump truck hydraulic parts, YUXUAN provides complete swing cylinder accessories, hydraulic valve components and one-stop technical maintenance solutions for global construction equipment users.
